The ir dichroic mirror , augmented by colour filters that perfected their colour-selective action, directed a blue image to the first tube, a green image to the second, and a red image to the surface.

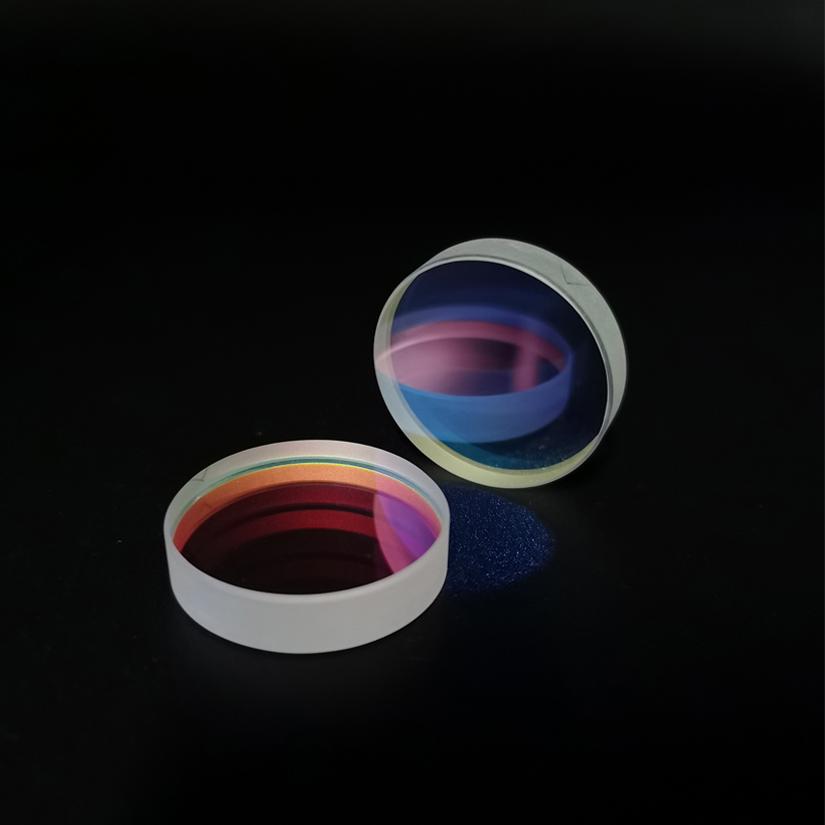

Specification of Dichroic Mirror
|
Material
|
BK7 or Fused Silica
|
|
Design Wavelength
|
546.1 nm
|
|
BK7
|
1.5183 ± 0.0005
|
|
Fused Silica
|
1.46008±0.00005
|
|
Diameter Tolerance
|
+0.00, -0.15 mm
|
|
Thickness Tolerance
|
±0.2 mm
|
|
Paraxial Focal Length
|
±2%
|
|
Centration
|
<3 arc minutes
|
|
Clear Aperture
|
>85%
|
|
Surface Irregularity
|
λ/4@632.8 nm
|
|
Surface Quality
|
60-40 scratch and dig
|
|
Protective Bevel
|
0.25 mm x 45°
|
TC Optics is a professional custom optics supplier, we provide optical components china, dichroic mirror polarization, diverging spherical mirror, shortpass dichroic mirror, diverging mirror and converging mirror and etc. Contact us to know dichroic mirror price or function of dichroic mirror in fluorescence microscopy.
